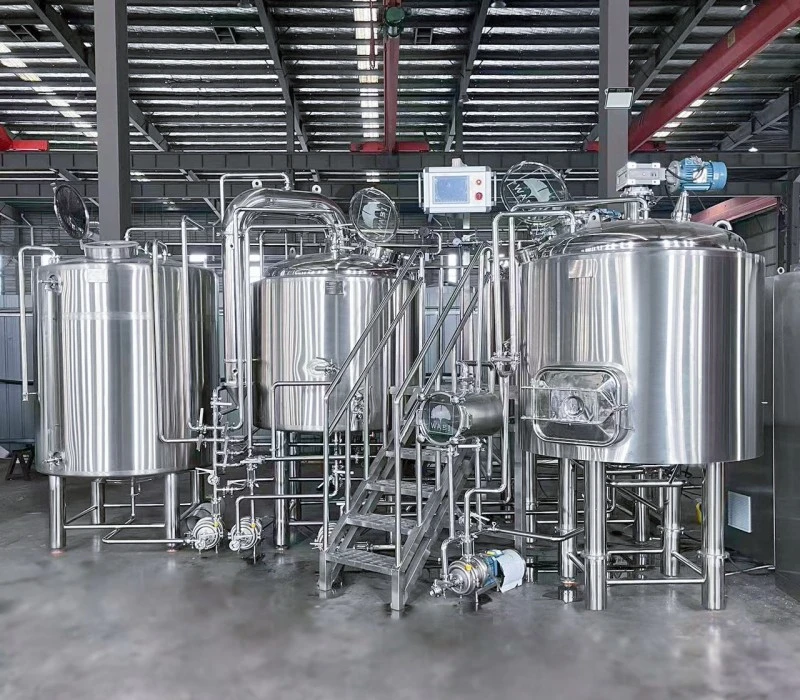

1500L Craft Beer Brewing Equipment

1500L Craft Beer Brewing Equipment

Introduction：

• Rainbowis a professional manufacturer and  leading exporter of craft beer brewing equipment, cold coffee brewing equipment, distilling equipment and other fermentation system.

• We design and produce fermentation system from 100L up to 50000L.

• Brewery system capacity from 1000L upto 50000L. A complete line includes malt milling and augersystem, brewhouse system, fermentation system, CIP system, cooling system, control system andfilling system. Brewhouse can be 2 vessel upto 4 vessel, with HLT and CLT tanks optional.

• Can produce barreled fresh beer, can also achieve glass bottles, cans, tinplate and other filling, sterilization. The equipment adopts automatic control, which can realize continuous multi-batch feeding.

• Brewhouse with 2/3/4 vessels and hot liquor tank (cold liquor tank), and with the heating method steam, gas direct fire or electric for option.

3 vessel：mash tun, lauter tun, Brew kettle/ whirlpool tank.

2 vessel：Mash/Lauter tun + Brew kettle/Whirlpool

BREWHOUSE:

• Mash tun with agitator, hydrator and grist case for option

• Lauter tun with rake, plow and scraper

• False bottom thickness 5mm, 0.7mm V-shape gaps, divided into pieces making easy taking out.

• Can be designed for high plato brewing.

• Wort collection ring

• Glass type wort grant after lautering

• Boiling kettle/whirlpool with reduced tangential inlet

• Wort outlet with trubs dam

FERMENTATION:

• Material: SUS304/316

• Volume: With 25% head space

• Jackets: Dimple cooling jackets on both cone and side wall.

• Insulation: polyurethane 100mm

• Side mounted manhole

• EPDM gaskets

• Interior finish: mirror polishing or pickled passivated

• Interior polish to 0.4μm without dead corner

• 100% TIG argon welding

• Tank and jackets tested by water and gas

• Pressure tank
